COMPOSITE STEEL DECKING MEZZANINE FLOOR | PORTAL FRAME

Category:Composite Steel Decking Mezzanine Floors
(0)
26.50 USD

(0 times Download )

Add To Cart

COMPOSITE STEEL DECKING MEZZANINE FLOOR | PORTAL FRAME

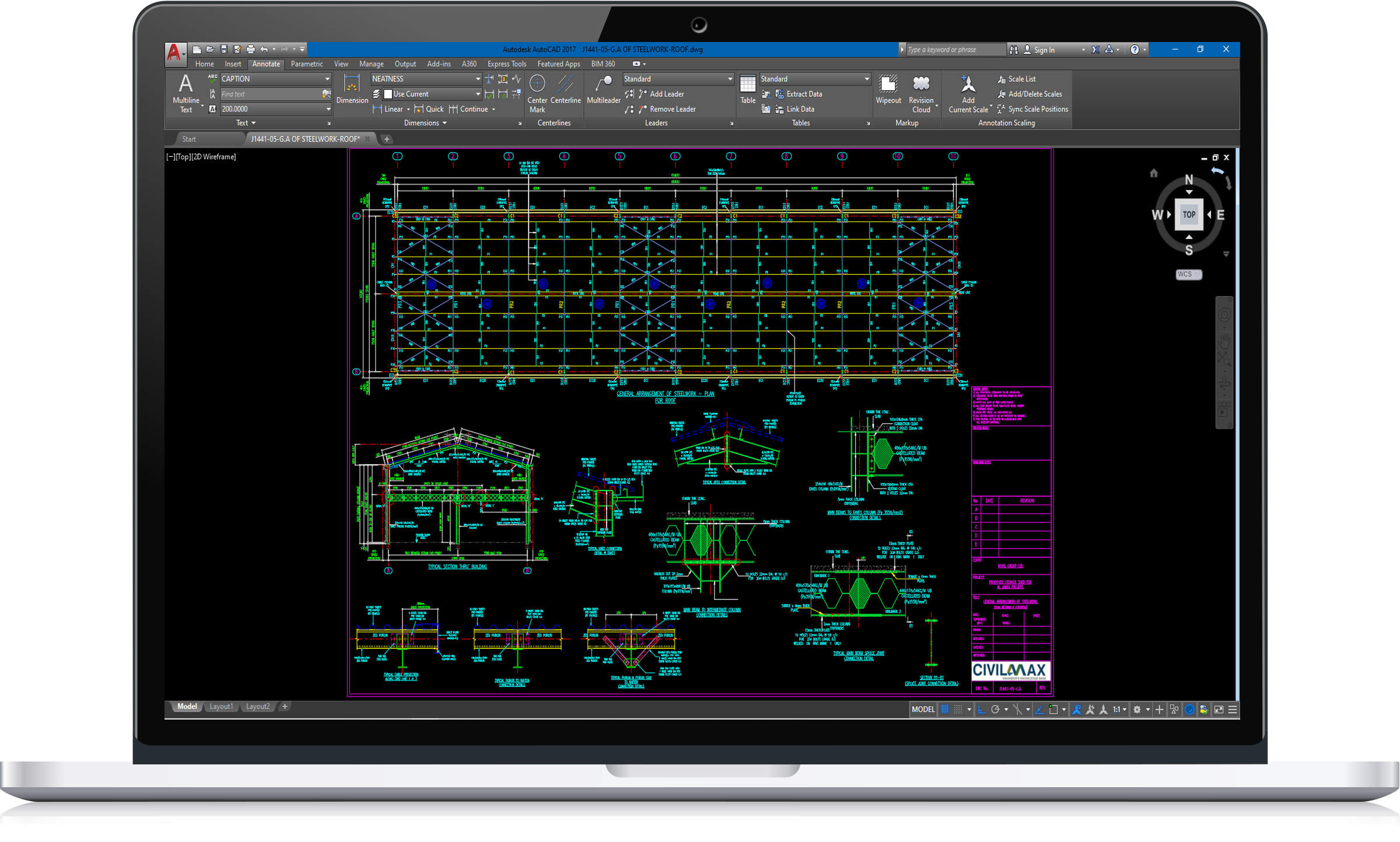

This is AutoCAD or DWG Steel building. A multi-span portal frame professionally detailed drawing, with mezzanine floor and access steel staircase. Floor plan dimensions: 29.96m x 43.26m floor plan and 8.6m Eaves Height one Mezzanine floor height dimensions: 4.3m. The drawing a dwg zipped file, it include full sets of drawings e.g general arrangement, assembly and single part drawings ready for fabrication. It is an economic design,Ideal for warehouse or bulk storage buildings. All drawings are in DWG/AutoCAD Format.
